92-52 Irrigating Up Crops Efficiently With Sprinklers

Author:

Richard L. Snyder
Biometeorologist
University of California, Davis

Drought Tip 92-52 is a publication series developed as a cooperative effort by the following organizations:

California Department of Water Resources - Water Conservation Office
Department of Land, Air and Water Resources University of California
USDA Drought Response Office
USDA Soil Conservation Service
If you have comments or suggestions, please email lawrweb@ucdavis.edu.

Last reviewed December 19, 2002

Drought Tip 92-52
Irrigating Up Crops Efficiently With Sprinklers


How much water should be applied during a sprinkler irrigation — and therefore how long the run time should be — can be easily calculated if the crop evapotranspiration rate and and reference evapotranspiration rates are known.

Evapotranspiration

When water evaporates (vaporizes) from a crop, the process is called evapotranspiration. Water evaporating from the plant surface or soil surface, is called evaporation. Water vaporizing inside the plant leaves and diffusing through leaf pores to the ambient air is called transpiration. Evapotranspiration (ET) is the sum of evaporation (E) and transpiration (T).

The evapotranspiration rate for a particular crop (ETc) is usually determined from the reference evapotranspiration (ETo) rate, which is an estimate of the evapotranspiration of a 4- to 6-inch tall, cool-season grass transpiring at its maximum rate.

Reference evapotranspiration (ETo) rates are a measure of the evaporative power or demand of the environment. In addition to weather, irrigation frequency, plant height, plant roughness, canopy ground shading, plant-water relations, and crop age all affect ETc rates. Table 1 gives ETo historical averages for the areas shown on the California evaporative demand map. Current ETo rates are available from the California Irrigation Management Information System (CIMIS). Local farm advisors can advise on how to obtain CIMIS data.

Table 1.

The ETc is calculated with the following formula, which adjusts the ETo to ETc with a crop coefficient (Kc):

ETc = ETo x Kc. (1)

When ETc is calculated, ETo rates adjust for weather factors (evaporative demand) and crop coefficients adjust for other physical and biological factors.

Irrigation and rainfall frequency affect the ETc rate during the initial growth period — the period from planting until the crop canopy shades approximately 10 percent of the soil surface area. Together, the ETo rate and the presence of water on or near the soil surface are the principal factors determining ETc rates during the initial growth period. When the soil surface is wet, the ETc rate is typically at or slightly above the ETo rate. However, as the soil surface dries, less water is available for surface evaporation and the ETc rate drops relative to the ETo rate. When the evaporative demand is high, the soil dries rapidly and, as a result, the ETc rate declines relative to the daily ETo rate.

Calculating Net Applications

Initial growth period ETc rates for sprinkler-irrigated crops can be calculated using Tables 1 and 2. First, find the appropriate evaporative demand area on the California map. Then, using Table 1, estimate the ETo rate corresponding to that area and the initial growth period of the crop. Using Table 2, find the ETo value in the left-hand column and locate the irrigation and/or rainfall recurrence interval (days to the next irrigation) at the top of the table. Select or interpolate to find the ETc value corresponding to the selected ETo and recurrence interval.

Table 2. Daily crop evapotranspiration (ETc) rates (inches/day)* for young (<10% cover), sprinkler-irrigated crops for a range of reference evapotranspiration (ETo) rates and irrigation and/or rainfall frequency.

*The ETc rate depends on the average ETo rate (from table 5) and irrigation or rainfall frequency. the daily ETc rate is multiplied by the number of days since the last irrigation to yield the net irrigation requirement (from figure 6 in Doorenbos and Pruitt (1977)). An irrigation or rainfall of 2, 4, 6, etc. indicates that irrigations or rainfall occur every second, fourth, or sixth day.

The net amount of water to apply is calculated by multiplying the selected ETc rate in inches per day by the irrigation frequency in days. If the irrigation water could be applied uniformly over the entire field, the required net application would be the amount to apply. But, since sprinklers do not apply water uniformly throughout the field, additional water must be applied to ensure that all areas receive adequate water. The gross amount of water to apply is determined from the required net application and an estimate of application efficiency.

Calculating Run Times

Calculate the gross amount of water to apply by dividing the required net application by an estimate of the sprinkler system's application efficiency, expressed as a fraction. Assuming no runoff occurs and the required net application is correctly determined, a sprinkler uniformity calculation can be used as an estimate of application efficiency. Many water districts, private consultants, and some public agencies will perform sprinkler system evaluations to determine sprinkler uniformity. Contact the local Cooperative Extension office for information on who performs sprinkler evaluation or for publications on how to perform your own tests. After the gross application amount has been calculated, the system run time is found by dividing the calculated gross application amount by the sprinkler application rate.

Sample Calculations

Given: Location: South Coast Interior Valleys

Initial growth period: April 1 - April 30

Sprinkler recurrence interval: 5 days

Application rate: 0.2 inches per hour

Application efficiency: 77 percent

ETo = 0.14 in/day (from Table 1)

ETc = 0.10 in/day (from Table 2)

Net application = (0.10 in/day) x 5 days = 0.50 inches

Gross application = (0.50 in)/0.77 = 0.65 inches

Run time = (0.65 in)/(0.2 in/hr) = 3.25 hours

Given: Location: Central Coast Coastal Valleys and Plains

Initial growth period: Sept. 15 - Oct. 15

Sprinkler recurrence interval: 7 days

Application rate: 0.2 inches per hour

Application efficiency: 70 percent

ETo = 0.12 in/day (from Table 1)

ETc = 0.07 in/day (from Table 2)

Net application = (0.07 in/day) x 7 days= 0.49 inches

Gross application = (0.49 in)/0.70 =0.70 inches

Run time = (0.70 in)/(0.2 in/hr) = 3.5 hours

Additional Recommendations

The guidelines presented here will help irrigators avoid applying more sprinkler water than necessary during a crop's initial growth period. If the soil profile is wet, water applied in excess of what the soil can hold will percolate below the crop root zone and not contribute to crop production. These recommendations may reflect application amounts considerably below those used by many growers. Where this is true, run times should be gradually shortened and the crop and soil water content closely observed to ensure that crop yield or quality is not affected by the reduced application amounts.

Tensiometers are useful for monitoring the soil water status while run times are being shortened. If the tensiometer readings do not rise signficantly and if no adverse crop effects are observed, the system run time can continue to be shortened. However, application totals should not fall below the amounts calculated from the procedure described in this leaflet. In high-salinity regions, gross application should be increased by 5 to 10 percent to provide for salt leaching.

References

California Department of Water Resources (DWR). 1975. Crop Water Use in California. Bull. 113-3, California Department of Water Resources. Sacramento, CA 94236-0001

Doorenbos, J., and W.O. Pruitt. 1977. Crop water requirements. FAO Irrigation and Drainage Paper 24. United Nations FAO, Rome.

Pruitt, W.O., E. Fereres, K. Kaita, and R.L. Snyder. 1987. Reference evapotranspiration (ETo) for California. UC Bulletin 1922.

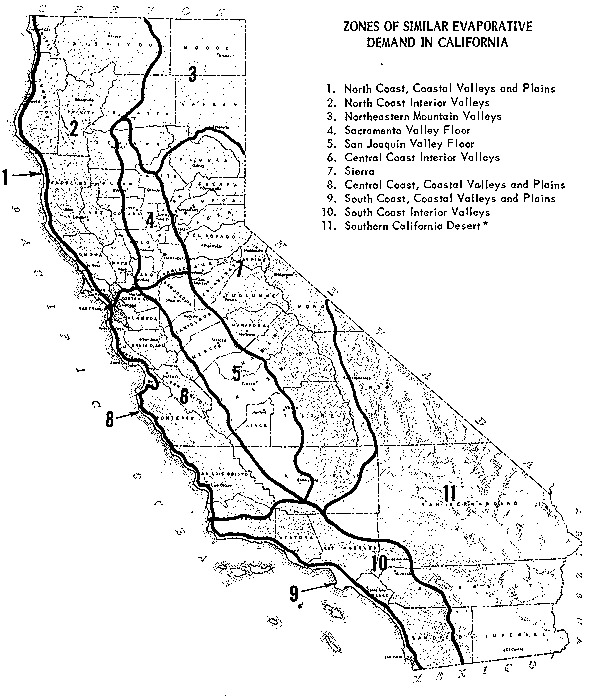

Figure 1. California evaporative demand map.
